UmlDiagrams is an application for generating UML Diagrams for source code and assemblies.
  • It includes an Add-In for VS.NET as well as WebMatrix.
  • It comes with a parser for C# and VB.NET so you don't need to compile the code, and gives forward and reverse engineering.
  • It is currently under development, and this is one of the early (Very early) snapshot of one of the diagrams it can create:
I'am getting there, but it still needs a lot of work. API is almost finished, starting work un UI framework.
UmlDiagrams window

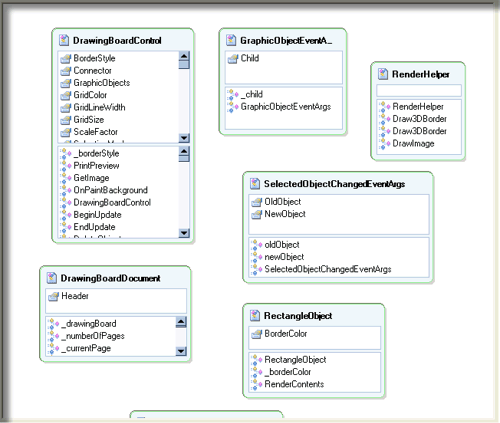

Figure 1: Sample of UmlDiagram.
UmlDiagrams early sample

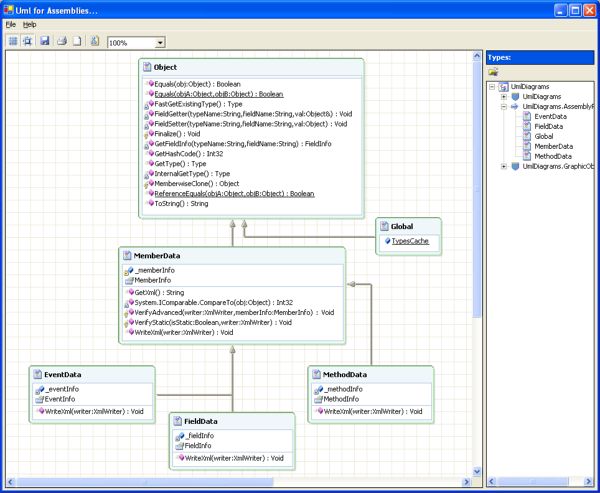

Figure 2: Early Sample of UmlDiagram.

Currenty it is planned to generate:
  • Class Diagrams
  • Use Case Diagrams
  • Deployment Diagrams
  • Activity Diagrams
  • Sequence Diagrams
  • and more...
